MINITABLE
Precision Miniature
Air Indexing Table
MINITABLE CHARACTERISTICS
The Kamo Seiko MINITABLE is a precise indexing table featuring extremely high positioning accuracy in a very compact and robust package.
The table rotation is uniform, with rotating torque being proportional to air pressure applied.
A simple four-way valve arrangement allows the MINITABLE to be installed easily with a wide range of applications
in mind. Due to the locking pin mechanism utilized, the MINITABLE provides holding torque and accuracy compatible
with its performance. With either base mounting or flange mounting available as standard, the MINITABLE can be
mounted in various orientations without sacrificing performance.
|

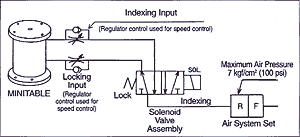

PLUMBING METHOD |

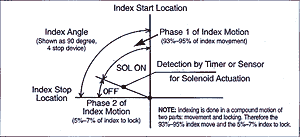

INDEXING METHOD |
 |
|

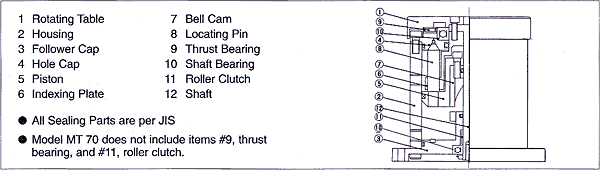

INTERNAL CONSTRUCTION
|
SPECIFICATIONS | Note: Indexing torque must be reduced by 40% of rated torque in models with two (2) index stops.
|
|
| Index Number | Stops | 2,3,4,5,6 | 2,3,4,5,6,8 | 2,3,4,5,
6,8,10,12 | 3,4,5,6,
8,10,12,16 | 16 stops is semi-standard |
| Index Speed | seconds | 0.5 | 0.8 | 1.0 | 1.5 | no load value |
| Index Accuracy | arc • min | ±4 | ±3 | ±2 | ±1 | arc minutes |
| Max Load Weight | kg
lbs | 1
(2.2) | 3
(6.6) | 15
(33) | 35
(77) | high speed not achievable
when at full load weight |
| Maximum Air Pressure | kg/cm²
(psi) | 7
(100) | 7
(100) | 7
(100) | 7
(100) | (psi) |
| Index Torque | N • m
(lb • in) | 1.96
(17) | 11.7
(104) | 29.4
(260) | 98
(867) | air pressure @ 60 psi |
| Internal Volume | cm³
(ci) | 36
(2.2) | 250
(15) | 500
(30) | 1300
(79) | cubic inches |
| Body Weight | kg
(lbs) | 2
(4.4) | 5
(11) | 10
(22) | 30
(66) | |
| Platen Diameter | MM
(in) | 120
(4.8) | 180
(7.2) | 250
(10) | 400
(16) | maximum recommended diameter |
| Rotating Direction | DIR | R • L | R • L | R • L | R • L | when viewed from
rotating source |
| Minimum Holding Torque | N • m
(lb • in) | 2.9
(26) | 11.7
(104) | 29.4
(260) | 98
(867) | |
| Maximum Load Inertia | kg•cm²
(in•lb•sec²) | 75
(.07) | 500
(.44) | 5000
(4.4) | 30,000
(26.5) | See inertia formula for definition |
| Operating Load - Thrust Load | N
(lbs) | 98
(22) | 980
(220) | 2940
(660) | 4900
(1100) | Maximum external load of
stopped table |
| Operating Load - Radial Load | N
(lbs) | 29
(6.6) | 245
(55) | 490
(110) | 1960
(440) | Maximum external load of
stopped table |
| Lubrication | | NR | NR | NR | NR | |
|

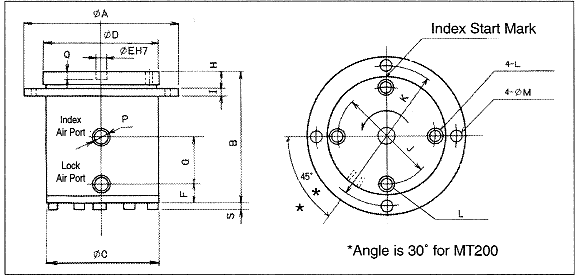

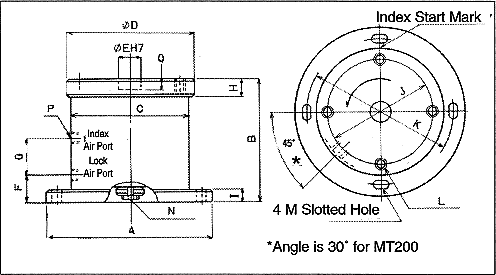

DIMENSIONS | Note: Rotation shown by arrow is left. When designing, observe
the mounting hole position as reference to index start mark.
|
Standard
Flange
MT SERIES DIMENSIONS
|
| MT70S | 98 | 105 | 70 | 72 | 8 | 15 | 40 | 14 | 8 | 60 | 86 | M 5
x 8 | 6x15º | — | M5 | 3 | — |
| MT70F | 98 | 100 | 70 | 72 | 8 | 10 | 40 | 15 | 5 | 60 | 86 | M 5
x 8 | 6 | — | M 5 | 3 | 5 |
| MT100S | 130 | 125 | 100 | 105 | 12 | 22 | 48 | 19 | 10 | 90 | 115 | M 6
x 10 | 6.5x15º | M 6
x 10 | RC1/8 | 7 | — |
| MT100F | 134 | 120 | 100 | 105 | 12 | 17 | 48 | 16 | 6 | 90 | 120 | M 6
x 10 | 6.5 | M 6
x 10 | RC1/8 | 7 | 6 |
| MT125S | 155 | 150 | 120 | 125 | 20 | 22 | 68 | 19 | 10 | 110 | 140 | M 6
x 10 | 9x15º | M 6
x 12 | RC1/4 | 7 | — |
| MT125F | 160 | 145 | 120 | 125 | 20 | 17 | 68 | 15 | 8 | 110 | 144 | M 6
x 10 | 9 | M 6
x 12 | RC1/4 | 7 | 6 |
| MT200S | 230 | 185 | 180 | 190 | 25 | 32 | 70 | 30 | 12 | 160 | 205 | M 10
x 20 | 11x6º | M 10
x 15 | RC1/4 | 13 | — |
| MT200F | 240 | 180 | 180 | 190 | 25 | 27 | 70 | 24 | 12 | 160 | 220 | M 10
x 20 | 11x6º | M 10
x 15 | RC1/4 | 13 | 6 |
All dimensions are metric
|
MODEL SELECTION
MT (70, 100, 125, 200), (S, F), (NUMBER OF INDEXES), (R, L) |
Example: MT70-S-4 - R is defined as a Model MT70 with a Standard mount, 4 stops and rotating to the Right when viewed from the top.
|
|
INERTIA / INDEX TIME RELATIONSHIP |
When designing the MINITABLE into an application, the load inertia, JL should be within the specified values. There is a correlation between indexing time and load inertia so care should be taken when determining the MINITABLE model and the indexing time to inertia load relationship. The indexing time listed in the specifications is a no load time. The index time for a load of maximum JL is set for 3 seconds. Calculated values of JL should be proportionally distributed between the no load index time and the 3 second maximum load time.
|
|

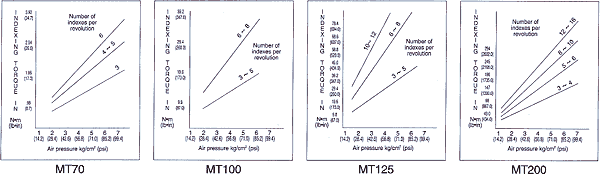

AIR PRESSURE / INDEX TORQUE RELATIONSHIP
In order to maintain long-term reliability in the MINITABLE selected, it is advised that the units be operated within the area shown in the charts below.
Minitable Indexers are warranted to be free from defects in material and workmanship for one year after shipment on condition
that the Minitable Indexer is installed properly and operated under conditions specified by us. Defects in material and/or workmanship
will result in replacement of the defective unit by the distributor. The unit should be returned freight prepaid to Lansea Systems
Incorporated for evaluation and determination of warranty failure. Consequential damages or time required to install or replace the
defective unit are not covered.
Specifications and dimensions are subject to change without notice.
This product is manufactured by Kamo Seiko Corporation, Aichi Prefecture, Japan. Subject to change without notice.
|
